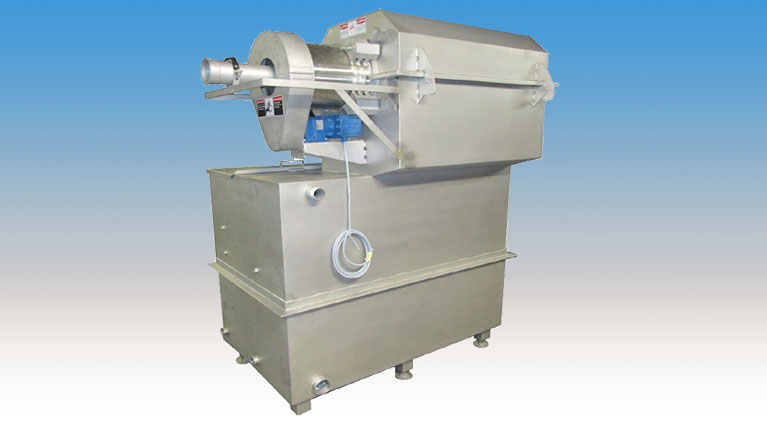

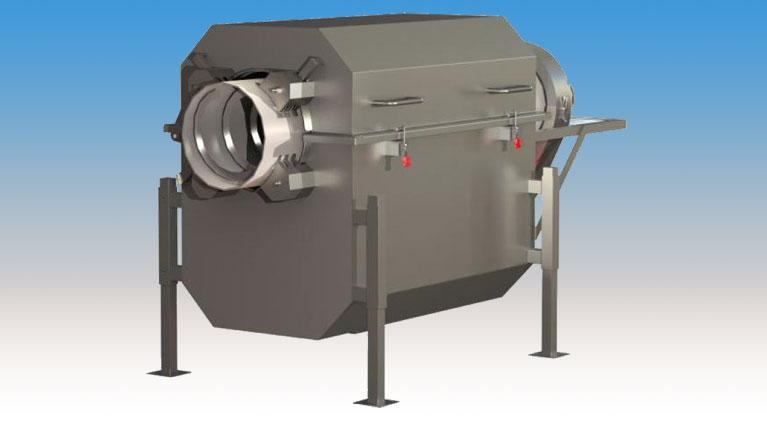

Our Prime paw water screening and re-use systems remove solid particles greater than .015 inches in size, in volumes ranging from 50-200 GPM. A typical system includes a first-stage rotating stainless-steel wedgewire drum screen (LPS-112), and can include an integrated tank (LPS-112-TS).

Features & Benefits

  • Save water and energy with paw water reuse system
  • Single drum and integrated tank-system models available
  • Customized models available
  • With built-in tank simple design with proven industry performance
  • Reduce overall water consumption throughout plant
  • Lower water treatment costs
  • Improve facility efficiencies and sustainability programs

Details

  • Electrical Requirements:
  • LPS-112: (1) 1/4 hp motor; 230 OR 460V, 3 PH, 60 Hz
  • LPS-112-TS: (2) 7.5 hp motors and (1) 15 hp motor; 230 OR 460V, 3 PH, 60 Hz
  • Water:
  • LPS-112: (2) 3/4 connections
  • LPS-112- TS: (2) 3/4 and (1) 2
  • Capacity:
  • Up to 200 GPM
