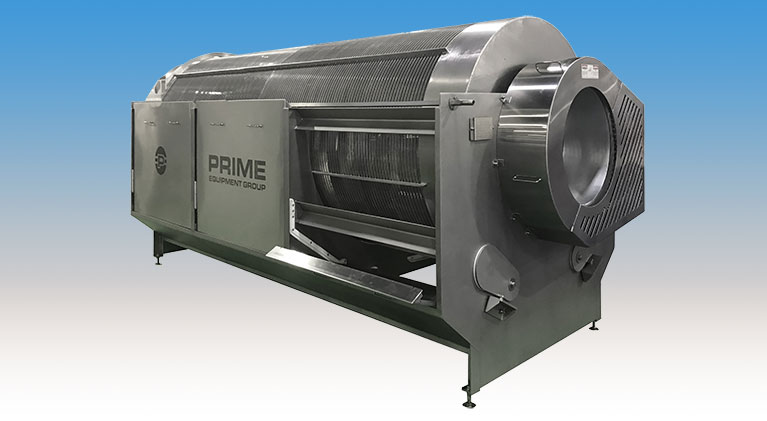

Our Prime Rotary Screen Separators are engineered to be the best-designed screens in the industry, with standard-leading ease-of-use features and high performance standards. These horizontally mounted, internally fed stainless steel wedge wire drums effectively remove excess process water from a wide variety of solid materials. Most separator applications are for feathers, offal, meat and skin, but we also designs systems for other food industries. Various drum diameters are available up to 60 inches (152 cm) I.D., with lengths of up to 12 feet (5.4m) effective screen.
Features & Benefits
- Control panel includes VFD/soft-start and can be remote-mounted
- Shock-absorbing drum wheels require no greasing
- Pneumatic traversing spray bar assemblies for trouble free operation
- Robust construction with no tubular sections
- Wedge-wire screens for optimum performance
- Fast drum wheel replacement without removing drum
- No requirement to remove parts for washdown
- Screen drum can be removed from frame vertically
- Stacking frame options
- Very low maintenance requirements
Details
- Electrical Requirements: (1) 3 hp motor, 230/460V, 3 ph, 60 Hz
- Water Requirements: (2) 3/4″ connections; 3.5 GPM; 30-50 PSI
- * Note: Water not needed during production on Feather Separator (OFS)
- Net Weight: Std. 60″ I.D.x 12′ model: 1,500 lbs. (680 kg)
- Additional equipment options include:
- Automatic Greasing System
- Motorized Traversing Spray Bars
- Infeed Diverters
