MAX 600
The MAX 600 is a compact massager with integrated cooling and vacuum pump, representing the entry into the Schröder massager program. The ideal “plug and play” machine for batches up to 600 kg.

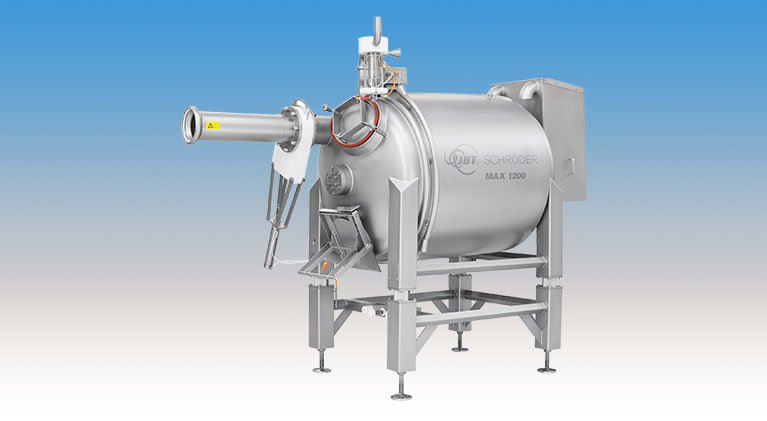

MAX 1200
The MAX 1200 is the next step in the compact class, making it the ideal machine for capacities up to 1200 kg – efficient and reliable. A range of options makes integration into any individual industrial manufacturing process possible.
Features & Benefits
- MAX 600/1200 control unit
- The intuitive user interface of the controller guides the program, guaranteeing safe, practical operation while storing all audit-relevant data.
- The functions in manual mode include manual control of all process parameters (for example: massaging, cooling and vacuum). In automatic mode, individual recipes can be selected and started automatically by setting a planned start or end point.
- The MAX recipe management system offers maximum flexibility as part of the automatic program sequences. It enables both the use of simple automatic programs with just a few individual steps and user-friendly input of complex recipes and sequences in up to five phases of the program.
- Pre-program – Bridges the time until the start of the main program (for example, initial massaging, keeping cool)
- Main program – up to three possible phases programmable:
- Part 1 – Linear sequence, step by step series of short programs with few individual steps
- Part 2 – Cyclical sequence, simplified entry of long programs using an adjustable number of repetitions of the individual steps
- Part 3 – Linear sequence, to complement of part 2, a final step-by-step sequence can be programmed
- Post-program – Bridges the time between the end of program and discharging (for example, temperature maintenance)
Details
- MAX 600
- Rated volume: approx. 790 l
- Fill level: approx. 75%
- Capacity: max. 600 kg product by manual loading
- Outer cylinder diameter: approx. 1000 mm
- Length, including drive: approx. 1850 mm (without vacuum suction)
- Width: approx. 1550 mm
- Height: approx. 2150 mm
- Discharge height: approx. 800 mm
- Electrical connection 3Ph/N/PE; 400/440V; 50/60 Hz or 3Ph/N/PE; 220V; 50/60 Hz
- Max 1200
- Rated volume: 1800 l
- Fill level: approx. 70%
- Capacity: 1200 kg
- Outer cylinder diameter: approx. 1300 mm

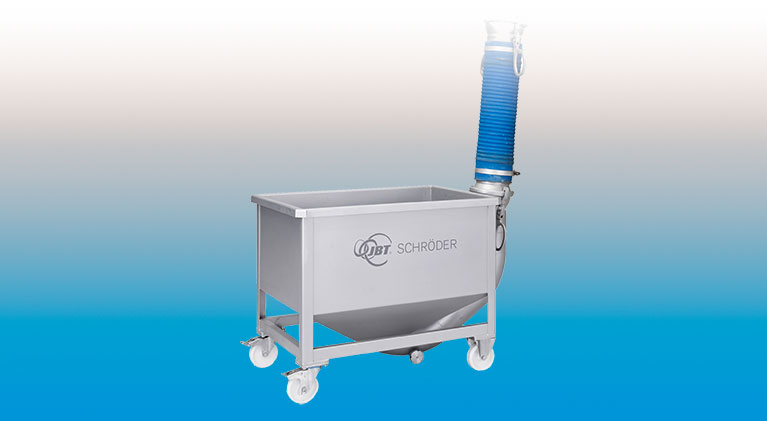

- Length, including drive: approx. 2400 mm (without vacuum suction)/approx. 4900 mm (with vacuum suction, BB600)
- Width: approx. 1400 mm
- Height (with base frame): approx. 2500 mm
- Drainage height: approx. 740 mm
- Electrical connection: 3Ph/N/PE; 400/440V; 50/60 Hz or 3Ph/N/PE; 220V; 50/60 Hz
